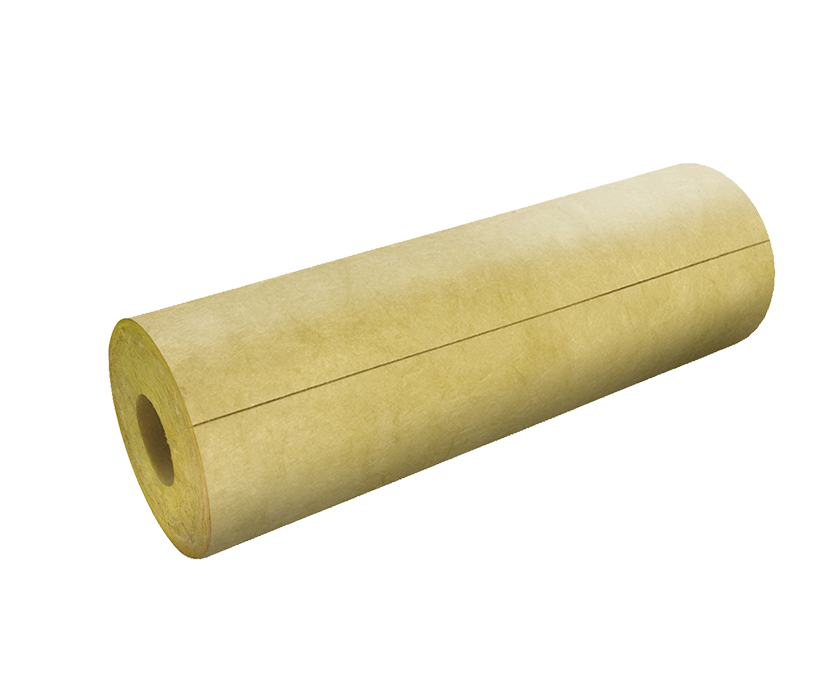

ABM-SR-MPS140 is preformed pipe sections through some mould for technical and pipeline insulation. It can be supplied with aluminium glass cloth.
Product Type | ABM - SR-MPS140 |
Inner Dia,inch | 1/2~12 |
Inner Dia,mm | 22~325 |
Thickness,mm | 25~100 |
Nominal Density,kg/mm3 | 140 kg/m3 |
Length,mm | 1000 |
*Other size and thickness are available on request
Properties | Value | Unit | Standard | |
Thermal Conductivity Coefficient | 10℃ | 0.036 | W/(m?K) | GN/T 10294 ASTM C518 ASTM C177 |
70℃ | 0.042 | |||
Fire Classification | Non- combustible Approval for A constructions | --- | IMOA.799(19) IMOA.754(16) | |
Max Service Temperature | Pipe 650℃ Facing 80℃ | ℃ | ASTM C411 | |
Melting Point | ≥1000 | ℃ | --- | |
Water Vapor Absorption | ≤1.0 | % | ASTM C1104M | |
Facings | ALGC（AG1） | -- | IMO A. 653(16) Low flame- spread | |
Environment | Asbestos free,no CFCs、HCFCs or HFCs | --- | --- | |
ABM-SR-MPS140 is mainly used for heat preservation and insulation of thermal pipelines, hot water pipelines and process pipelines to avoid heat loss and reduce the condenser effect, thereby ensuring the stability of the process and improving thermal efficiency.
ABM has prepared a variety of facings for different products. In most cases, these facings can protect the product and enhance its performance. Customers can choose the facing base on personal demands.
The EGF-20210 is strong enough to protect insulation materials and prevent the dust spread to the environment with its high density
AG-10701 is composited with Aluminium foil and glass cloth, has good tensile strength, dust-free and nice outlook.
AL-30150 is a reinforced aluminum surface can provide the best solution on vapour barrier. It can protect the insulation materials and steel from vapour which will damage the insulation properties and cause the corrosion.
